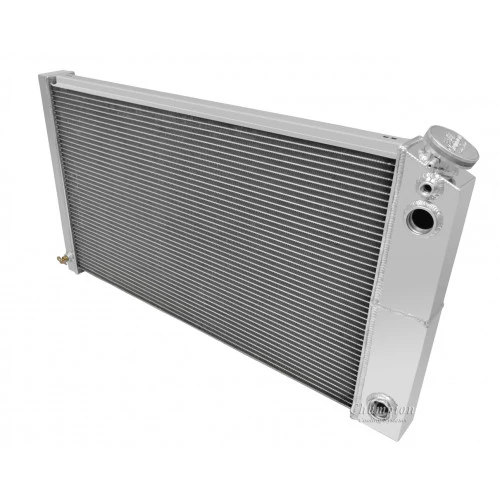

Performance Online's all new LS Conversion Aluminum radiators are constructed of aircraft grade aluminum. Each radiator is 100% tig welded aluminum with 14-16 cooling fins per inch to allow even distribution of cooling. They feature 2mm thick tanks and fittings with cooling for the baddest engines out there. 3 row radiators have a core thickness of 2.50" with 5/8" cooling tubes

LS Core Specifications

Radiator Flow:             Dual Pass

Core Dim (H x W):       17 x 20 3/4"

Overall (H x W):           18 5/8 x 33

Hose Location:             In: Passenger / Out: Passenger

Inlet Fittings:               1.25", 1.50", 1.75"

Outlet Fittings:             1.25", 1.50", 1.75"

Trans Cooler:               None

Steam Port:                 Included

Mounting Type:            Side Flange Mount
