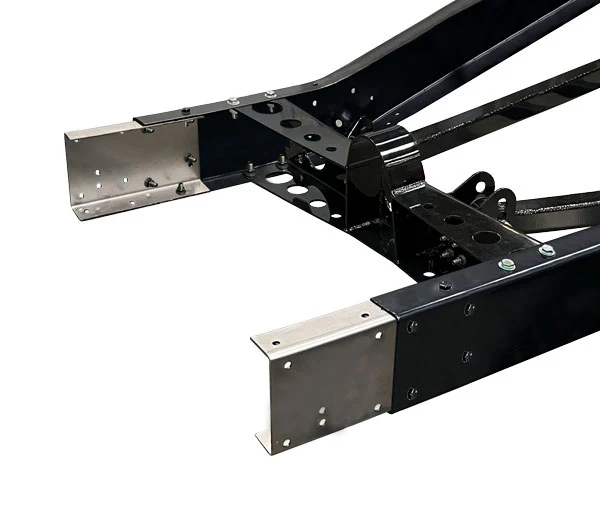

This 1963-72 Chevy C10 long bed to short bed frame conversion includes a laser etched steel template with all hole locations clearly marked and high strength steel inner "C" channel brace and all necessary hardware to install the kit, along with highly detailed instructions. By using this conversion kit, you will have everything needed to shorten your long bed frame with basic hand tools in your own garage. The kit does require welding to finish the conversion but with our steel inner braces, you will be able to safely transport the vehicle to a certified welder if needed. New Cab Mounts Highly Recommended at time of instalation.

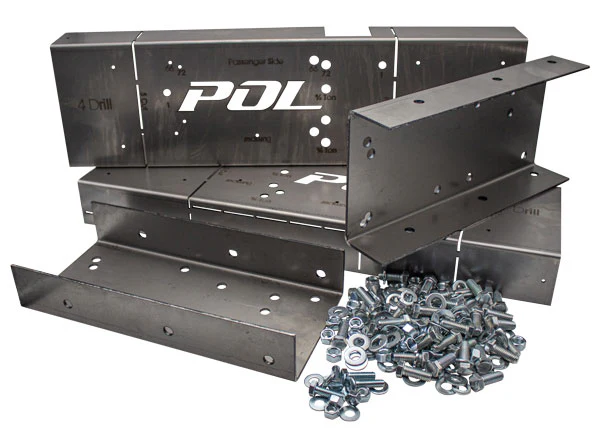

Kit includes:

• Laser etched steel template
• Steel inner "C" channel brace
• All necessary hardware

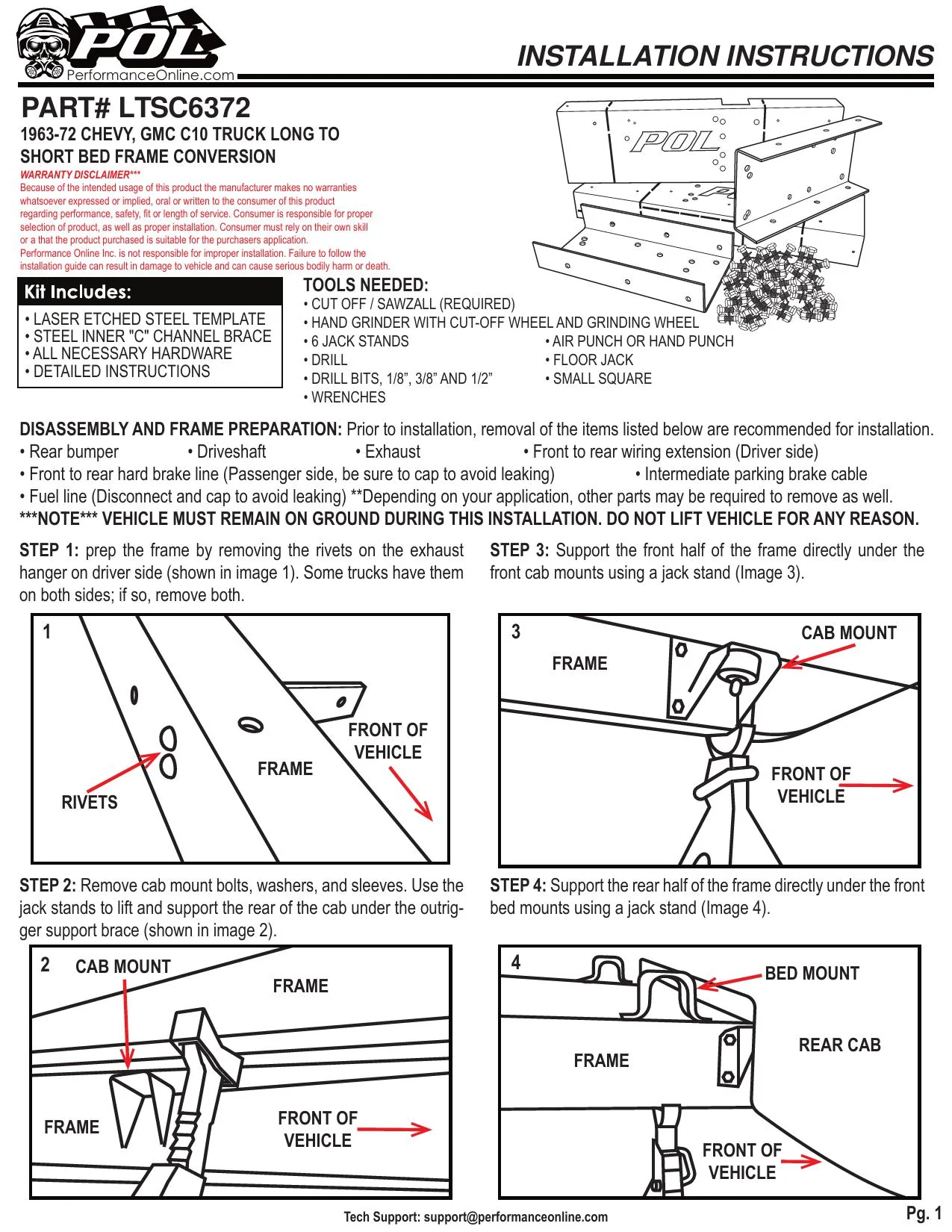

• Detailed instructions

Requires year specific Short Bed parking brake cables and brake lines.
Will also work on 3/4 Ton coil spring trucks, but 1967-72 will require changing cab mounts to 1/2 Ton C10 mounts.
Driveshaft will have to be shortened before re-installation.
Not designed to work on 133" wheelbase trucks (Longhorn)
Will not work on 4x4 trucks
Welding required
